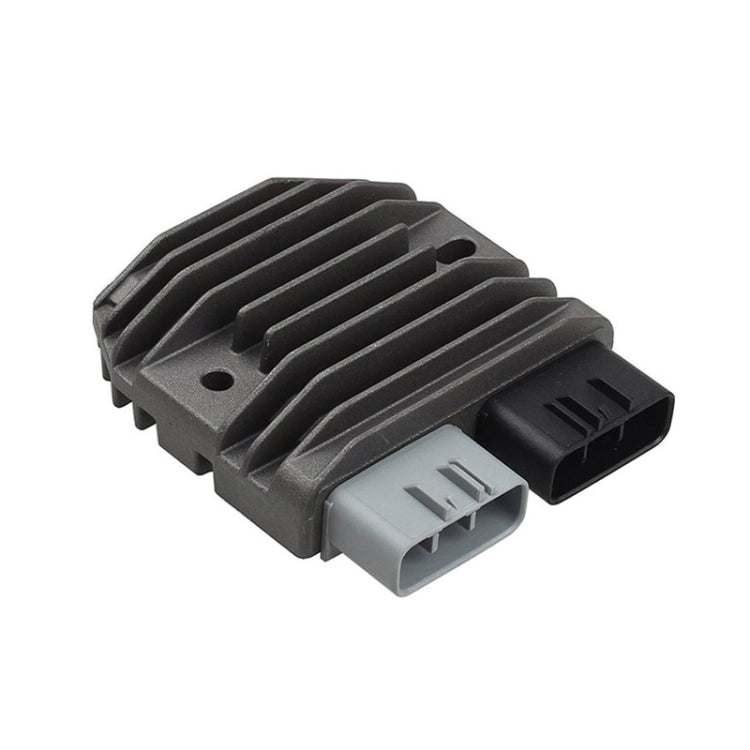

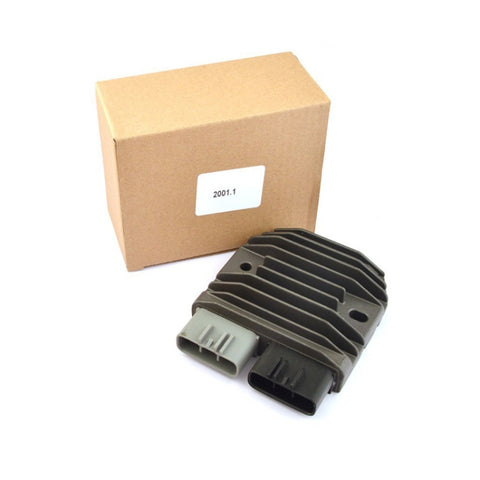

2001.1 Motorcycle Rectifier For Honda / Yamaha / Kawasaki / Suzuki / KTM / Ducati, 2001.1

1. Weight: 260G
2. Applicable battery: 12V
3. Output voltage: 14.5V
4. Output current: 50A
5. Heat dissipation material: aluminum heat dissipation shell

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent excessive voltage from burning out other electrical components when the rectifier is damaged.

Applicable models:
For 2424
For Cann Outland r 1000 2011 2014 278002021
For Cann Outland r 800 2011 2014 278002021
For Can Am Maverick 1000 2014 278002021
For Cann Outland r 1000 2012 2013 278002021
For Cann Outland r 500 2008 2013 710001191
For Cann Outland 800 1906 1914 710000870
For Cann Outland 650 2008 2014 278002021
For Cann Outland r 400 2008 2014 278002021
For Cann Outland Max 400 2008 2014 278002021
For Cann Outland r Max 1000 2013 278002021
For Cann Outland Max 800 2006 2014 278002021
For Cann Outland Max 650 2006 2013 278002021
For Cann Outland r Max 500 2007 2014 278002021
For Can Am Renega EFI / X / R 800 2008 2014 278002021
For Can Am Renega 500 2008 2014 278002021
For Can Am Renega 1000 2012 2013 278002021
For Honda SXS Pioneer 700 2014 2017 31600-MGZ-J01
For Honda SXS Pioneer 500 2015 2017 31600-MGZ-J01
For Honda TRX FE 420 2014 2017 31600-MGZ-J01
For Honda TRX FA / FGA 680 2006 2012 31600-HP0-A01
For Honda TRX FE / FGA / FM / FPA / TM 500 2005 2011 31600-HP0-A01
For Honda TRX FA / FGA 650 2003 2005 31600-HN8-003
For Honda TRX FE 500 2012 2017 31600-MGZ-J01
For Honda TRX FA 420 2014 2017 31600-MGZ-J01
For Honda TRX TM 420 2014 2017 31600-MGZ-J01
For Honda TRX FP 500 2012 2014 31600-MGZ-J01
For Honda TRX FA 680 2015 2017 31600-MGZ-J01
For Honda TRX FM 500 2012 2017 31600-MGZ-J01
For Honda TRX TE 420 2014 2016 31600-MGZ-J01
For Honda TRX FA 500 2012 2017 31600-MGZ-J01
For Honda TRX FM 420 2014 2017 31600-MGZ-J01
For Honda TRX Lincoln 680 2006 2013 31600-HP0-A01
For Honda TRX FA 650 2003 31600-HN8-000
For Kawasaki KRF TERYX 800 2014 2017 21066-0022
For Kawasaki KRT TERYX 4 750 2012 2013 21066-0022
For Kawasaki KRT TERYX 4 800 2016 2017 21066-0022
For Kawasaki KVF Brute Force 4x4 750 2012 2017 21066-0744
For NP ATV 500 500s 2012
For Polaris RZR S / EFI 800 2011 2013 4012941
For Polaris RZR EFI 570 2012 2013 4012941
For Polaris RZR XP 900 2012 2013 4012941
For Polaris Ranger Crew 800 2011 2014 4012941
For Polaris Ranger Crew 900 2014 4012941
