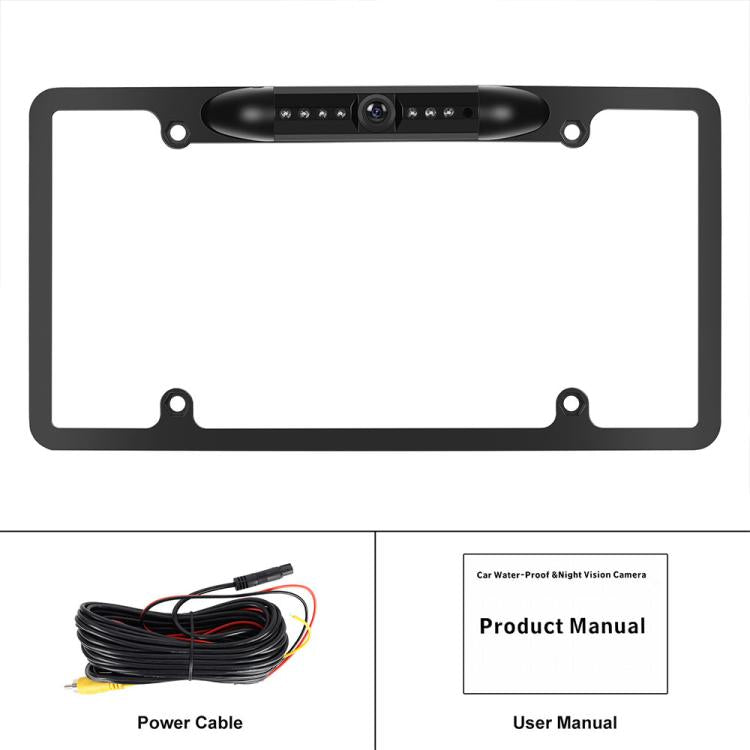

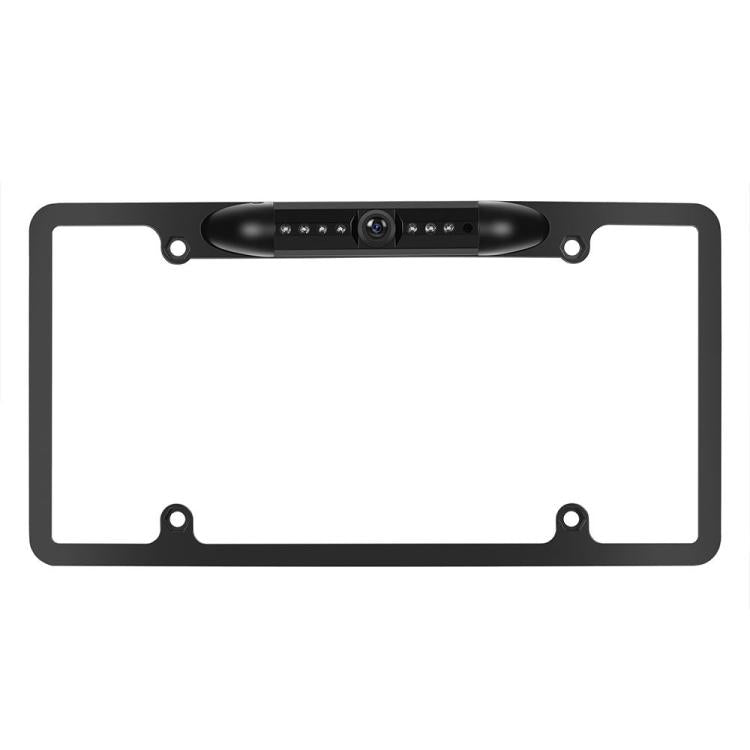

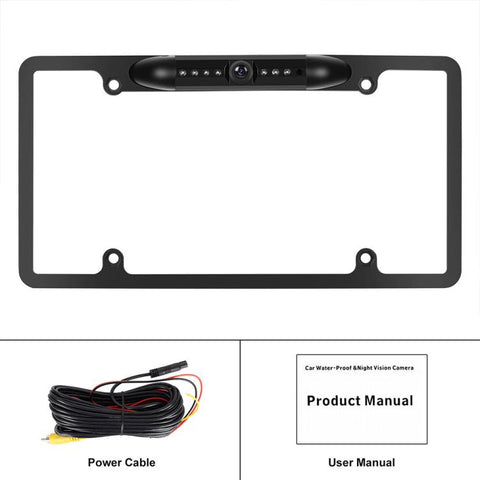

Car Waterproof HD Infrared Night Vision Backup Camera US Standard License Plate Frame

Features:
1. Color Night Vision & Clear Imaging: Equipped with 7 high-brightness auxiliary LEDs, delivering clear, realistic color night vision images even in low-light conditions.

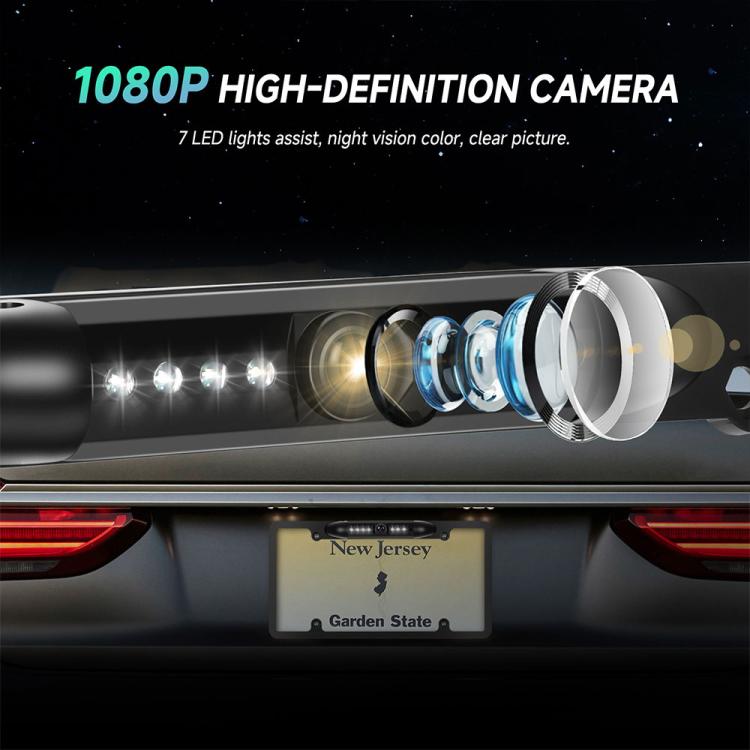

2. 1080P Full HD Camera: Features 1080P Full HD resolution to capture every detail precisely—rendering license plates and curbs clearly—and provides a daytime-like view while reversing.
3. Switchable Video Formats & Broad Compatibility: Supports CVBS, AHD 720P, and AHD 1080P output formats, allowing for flexible switching based on the specific requirements of the vehicle's display screen.

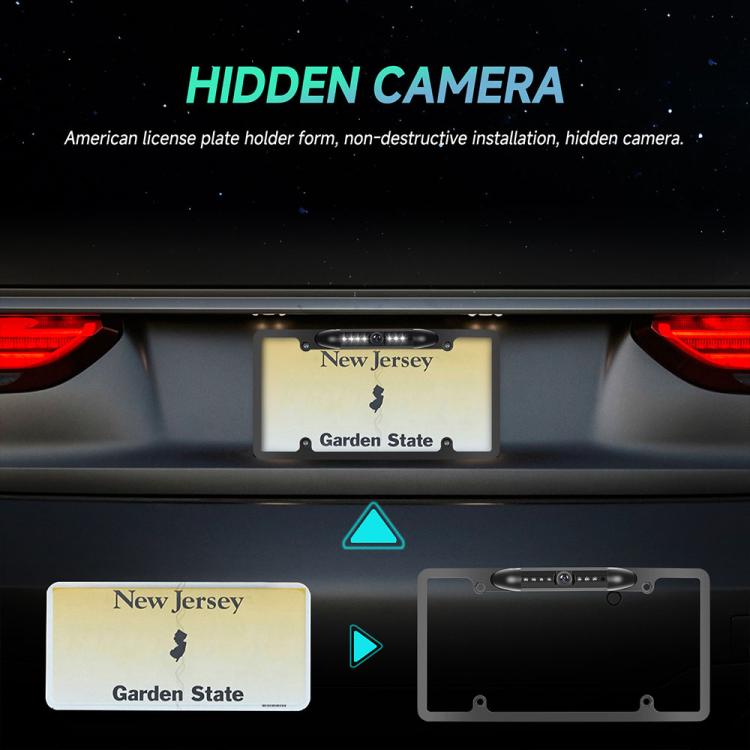

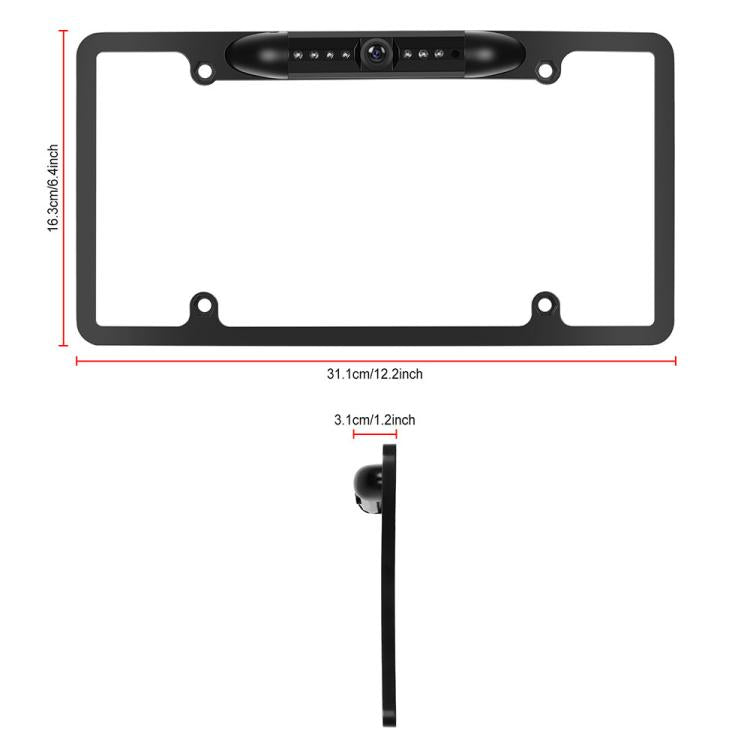

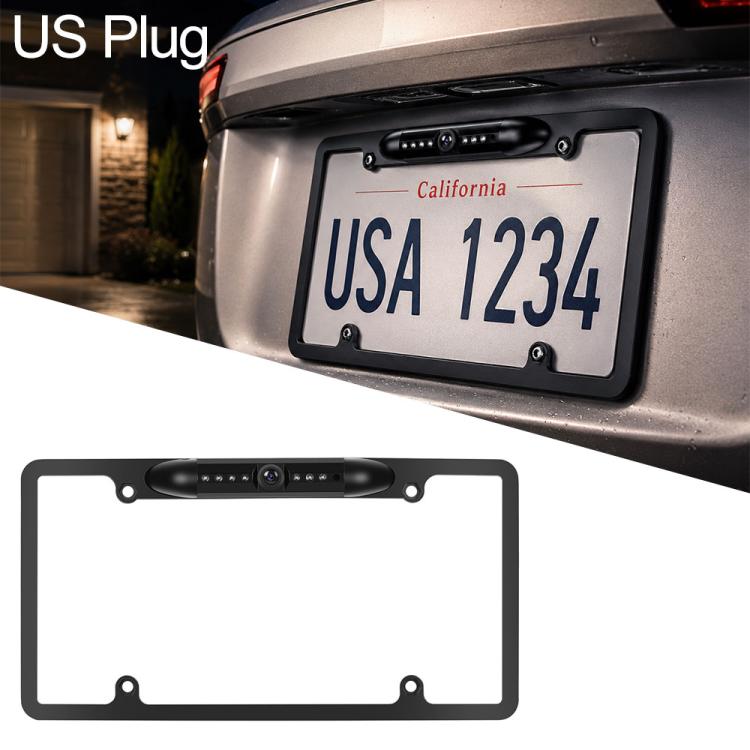

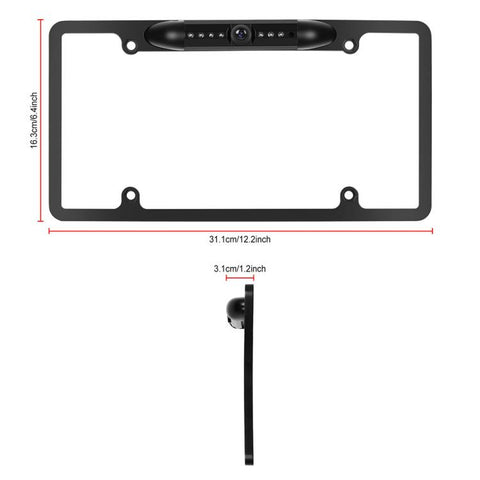

4. US-Style License Plate Frame Design: Designed to match US license plate standards, it integrates seamlessly with the vehicle's exterior for a discreet, non-destructive installation that maintains the car's aesthetic appeal.
5. Wide-Angle Lens for Expanded Field of View: Equipped with a wide-angle lens that offers extensive coverage, minimizing blind spots; obstacles on both sides of the vehicle are clearly visible, further enhancing reversing safety.
6. Adjustable Lens Angle: The camera supports manual vertical tilt adjustments, allowing you to fine-tune the viewing angle based on the specific vehicle and personal preference to lock in the optimal view.

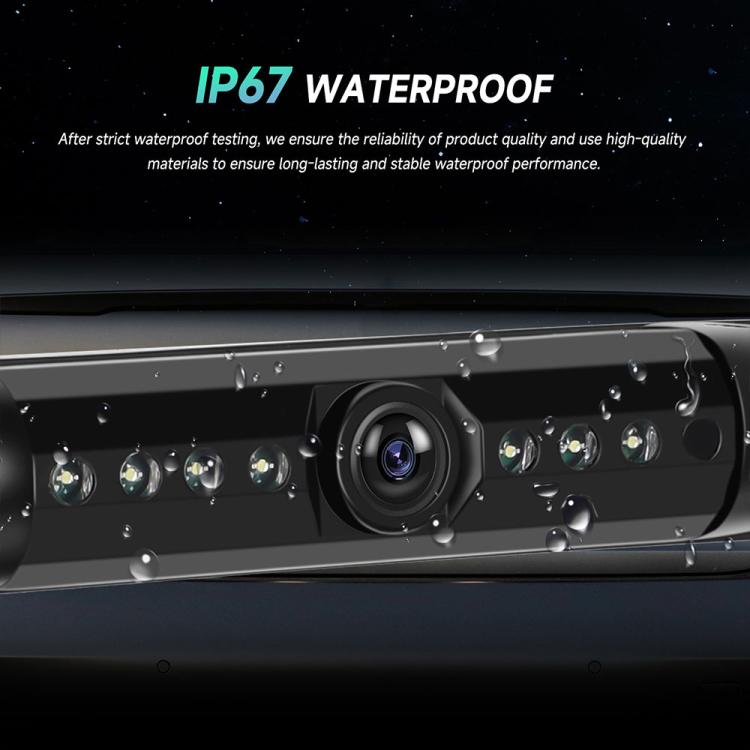

7. IP67 Waterproof Rating: The camera unit is rated IP67 waterproof, effectively preventing the ingress of rain, car wash water, and other liquids; it operates reliably in harsh weather conditions, ensuring a longer service life.

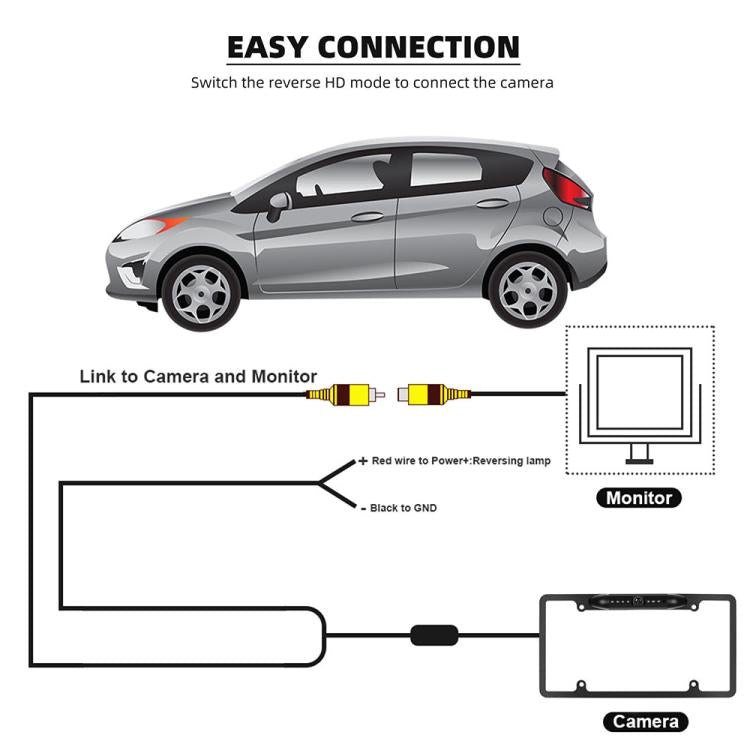

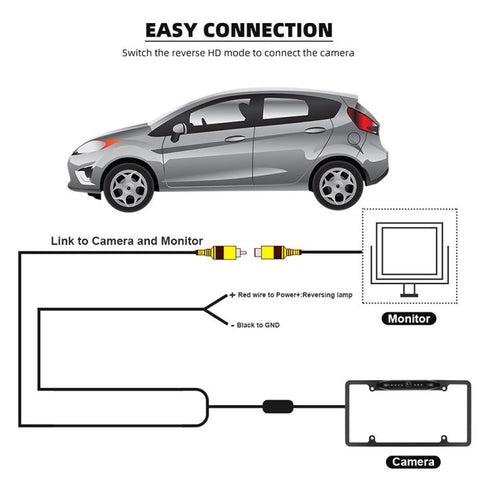

8. Stable Wired Transmission: Wired connectivity offers greater stability and reliability compared to wireless transmission, reducing the risk of signal interference and ensuring smooth, lag-free video transmission.

Camera Specifications:
1. Image Sensor: 1336+5322 1/3-inch
2. Pixels: 2 Megapixels
3. Resolution: 1920x1080
4. Clarity: Full HD
5. Dynamic Range: >45dB
6. Lens Angle: Horizontal viewing angle >100°
7. Minimum Illumination: 0.1 Lux
8. Signal-to-Noise Ratio: >45dB
9. Video Output: 1.0Vp-p, 75Ω
10. Power Supply: 5V (±5%) / 120mA
11. Operating Voltage: 12V
12. Operating Temperature: -20°C to +60°C, 95% relative humidity
13. Storage Temperature: -40°C to +90°C, 95% relative humidity
14. Waterproof Rating: IP67

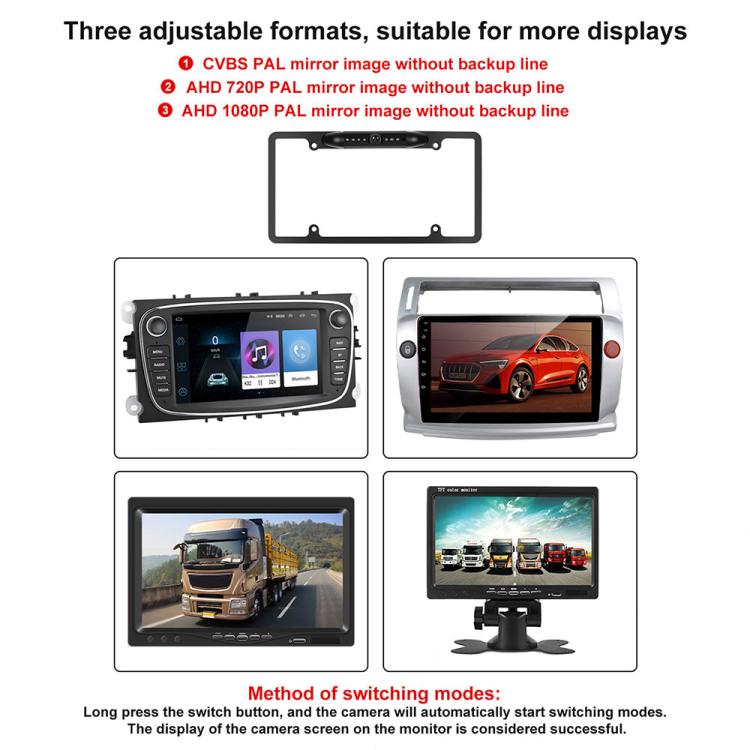

15. Switchable Signal Formats:
CVBS PAL, Mirrored Image, No Parking Guidelines
AHD 720P PAL, Mirrored Image, No Parking Guidelines
AHD 1080P PAL, Mirrored Image, No Parking Guidelines

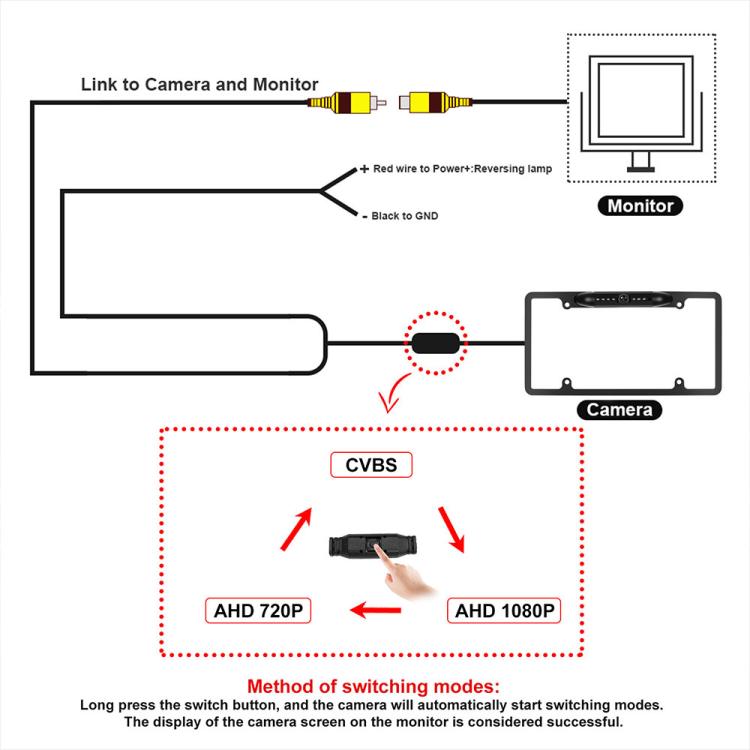

16. Switching Method: Long-press the switch button; the camera automatically cycles through the formats, and the switch is successful when the display screen image updates accordingly.
