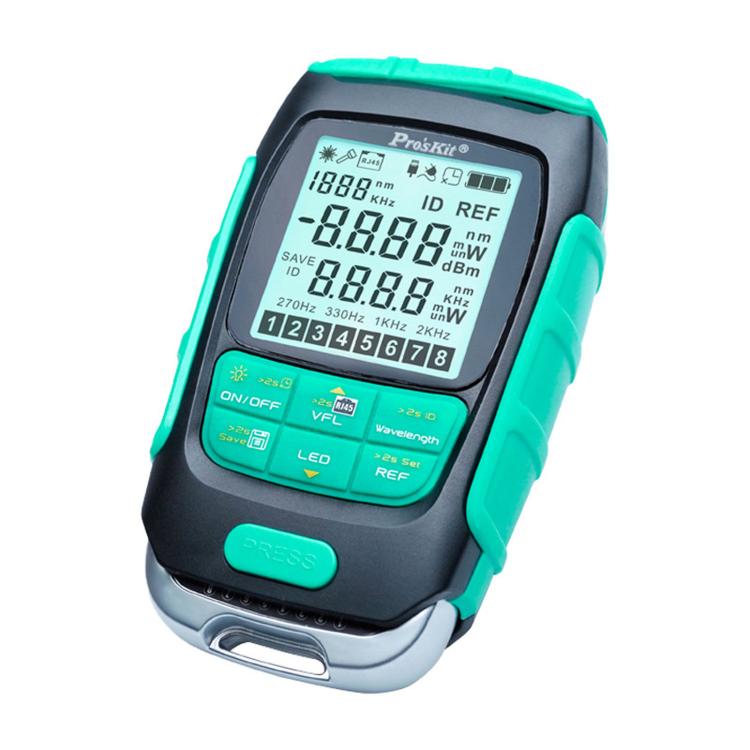

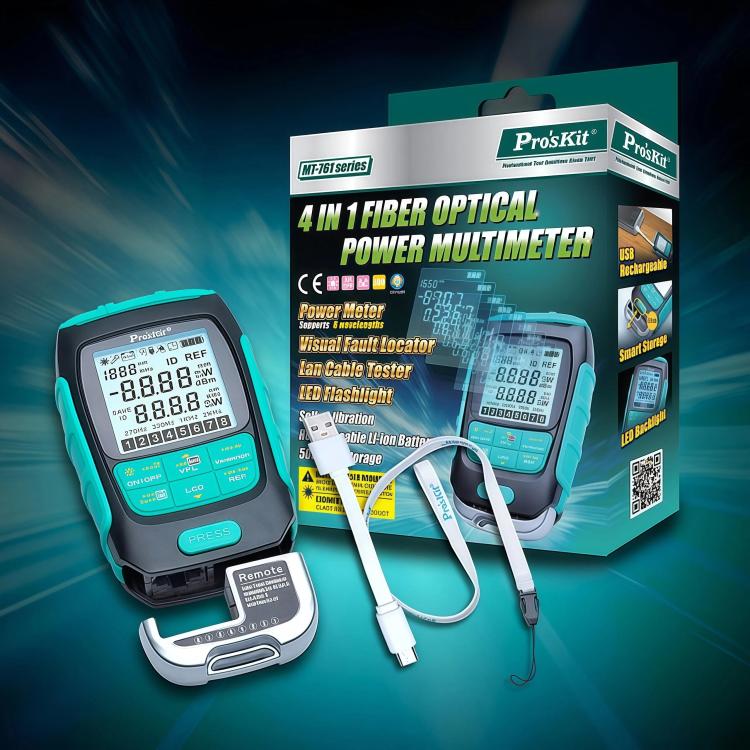

Multifunctional Optical Power Meter 4 In 1 Fiber Optic Tester, Proskit MT-7615-C 15nW, Proskit MT-7616-C 30nW
- $61.71
-
- $61.71
- Unit price
- per
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Orders ship within 1-2 business days. Estimated delivery: 7-15 business days depending on destination.
Free Returns
Shipping & Delivery Notice
Description
x1. Output Power: MT-615: 15mW; MT-616: 30mW
2. Test Distance: Single-mode fiber, MT-615: 10-12km; MT-616: 14-16km
3. Detector Type: InGaAs
4. Wavelength Response Range: 700-1700nm
5. Power Meter Interface: 2.5mm universal connector
6. Measurement Wavelengths: 850/980/1300/1310/1490/1550/1625/1650nm
7. Measurement Range: -70 to +10dB
8. Resolution: 0.01dB
9. Accuracy: 1550, 1310nm +/-0.2 dB; 1490nm, 1625nm, 1650nm +/-0.3 dB; 850nm, 980nm, 1300nm +/-0.4dB

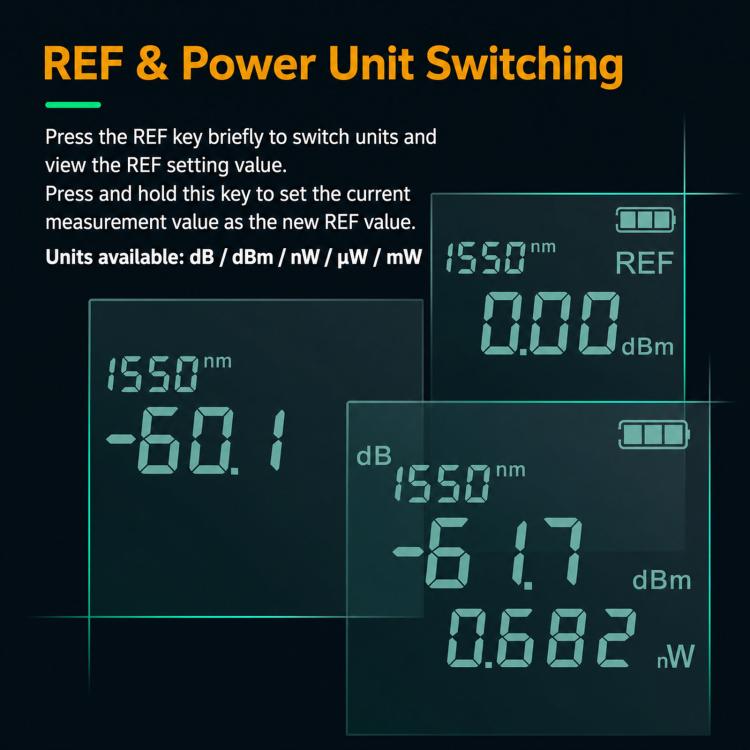

10. Display Units: dB, dBm, mW, μW, nW

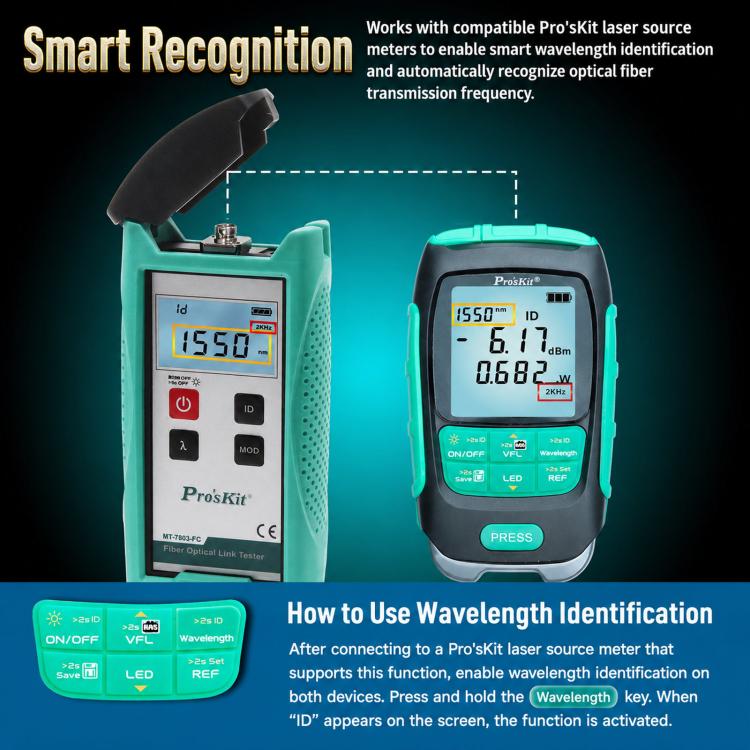

11. Frequency recognition: 270/1k/2kHz
12. Data storage: 500 sets

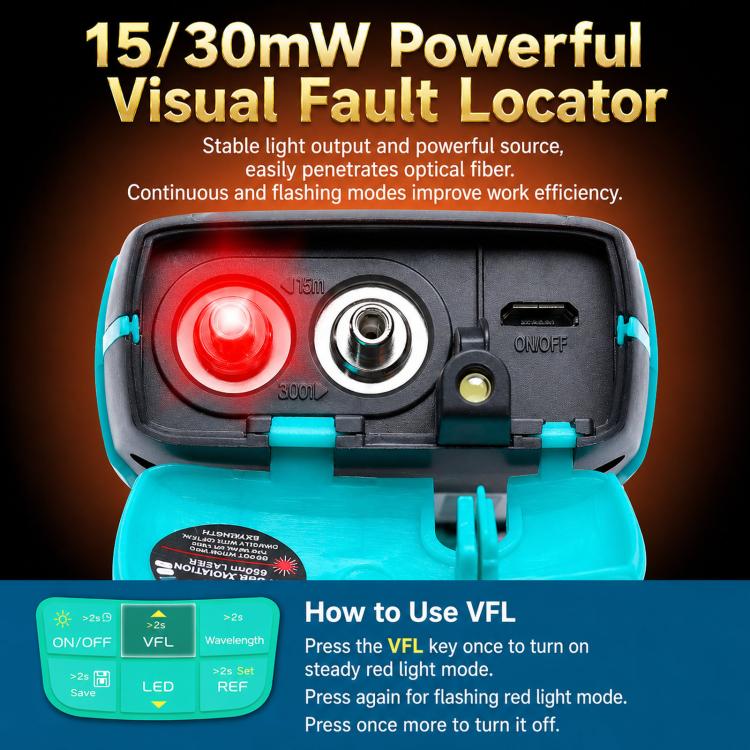

13. Red light source interface: 2.5mm universal connector
14. Red light wavelength: 650 +/-20nm
15. Output mode: Constant on / 2H flashing
16. Compatible Networks: UTP network cables
17. Connector Type: RJ45 (UTP/8P8C)
18. Test Type: Network Cable Sequence
19. Test Distance: 600 m

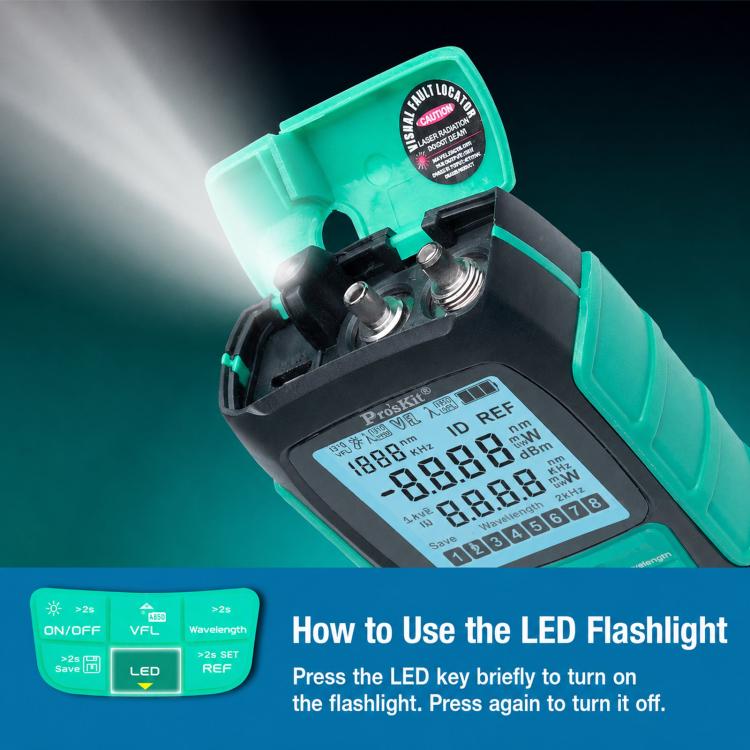

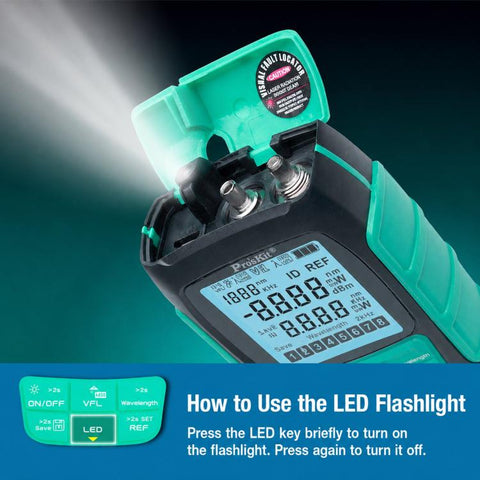

20. Illumination: LED Light
21. Low Battery Indicator: Battery Level Indicator
22. Other Features: Wavelength Memory, Wavelength Identification (ID), Self-Calibration, Relative Measurement, Screen Backlight, Auto Shutdown (10 minutes)

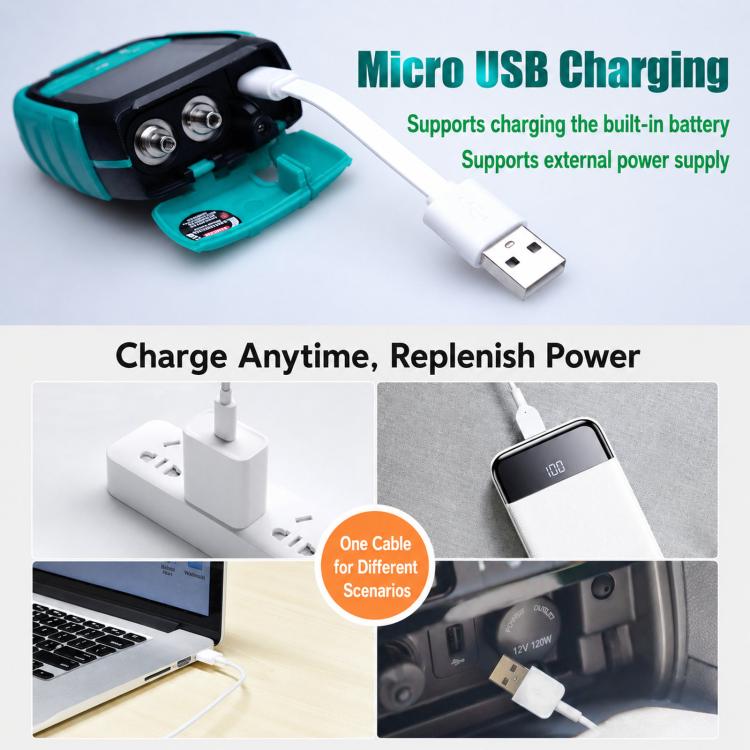

23. Charging Interface: Micro USB
24. Operating Time: Approx. 50-60 hours (power meter mode)
25. Power Supply: 3.7V/450mAh, Li-ion (charging time approx. 3 hours, standby time up to 90 days)
26. Operating Environment: -10 to 50 degrees Celsius, less than 90% RH

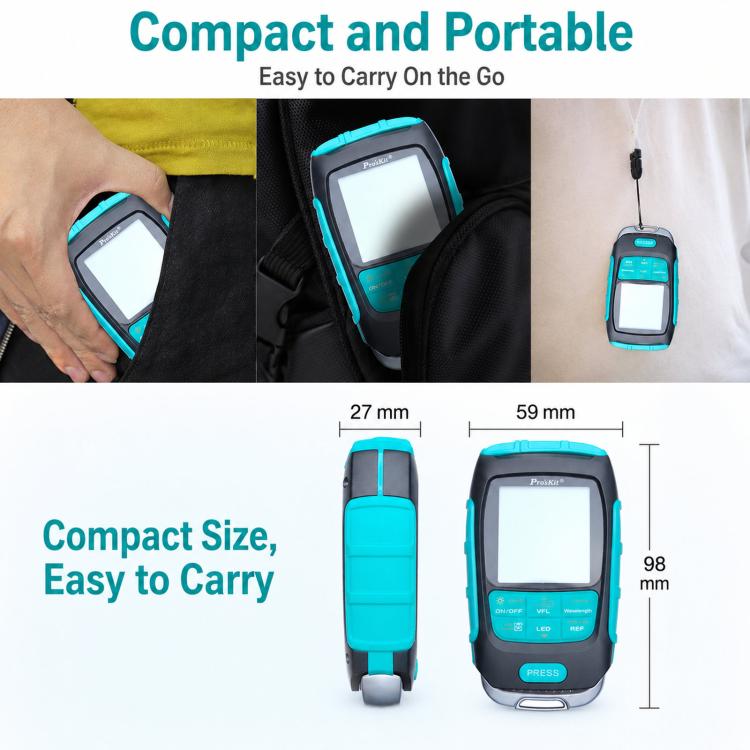

27. Dimensions: Approx. 9.8 x 5.9 x 2.7cm
28. Weight: Approx. 100g
Features:

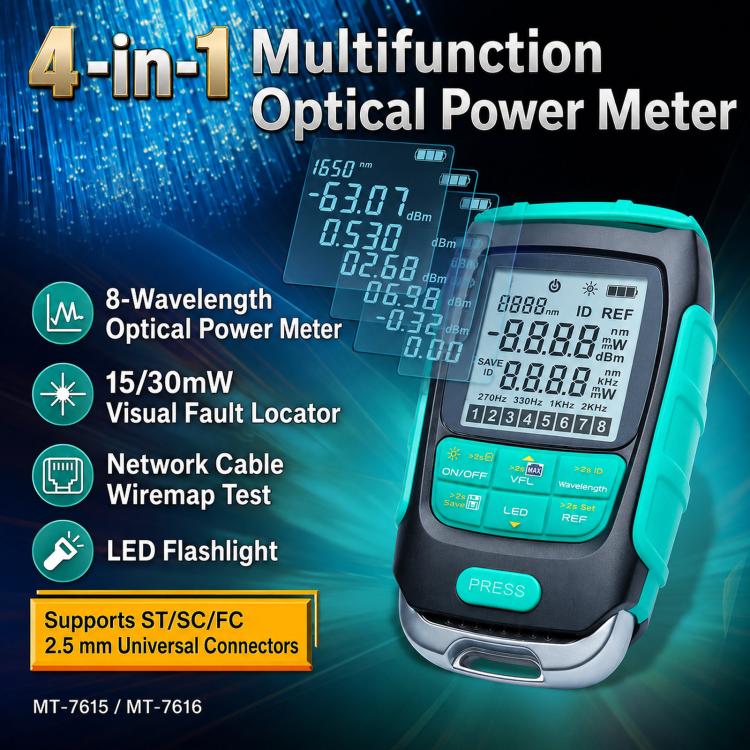

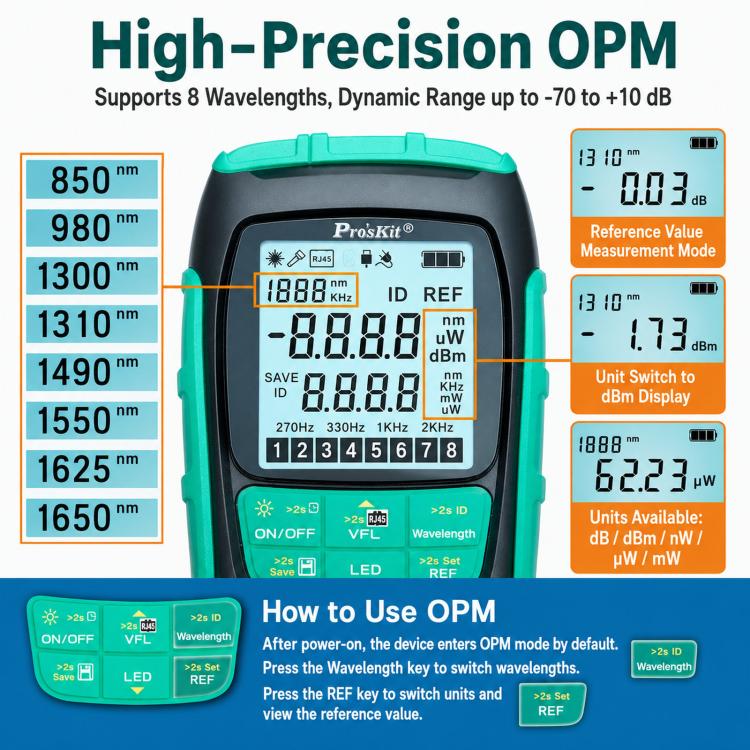

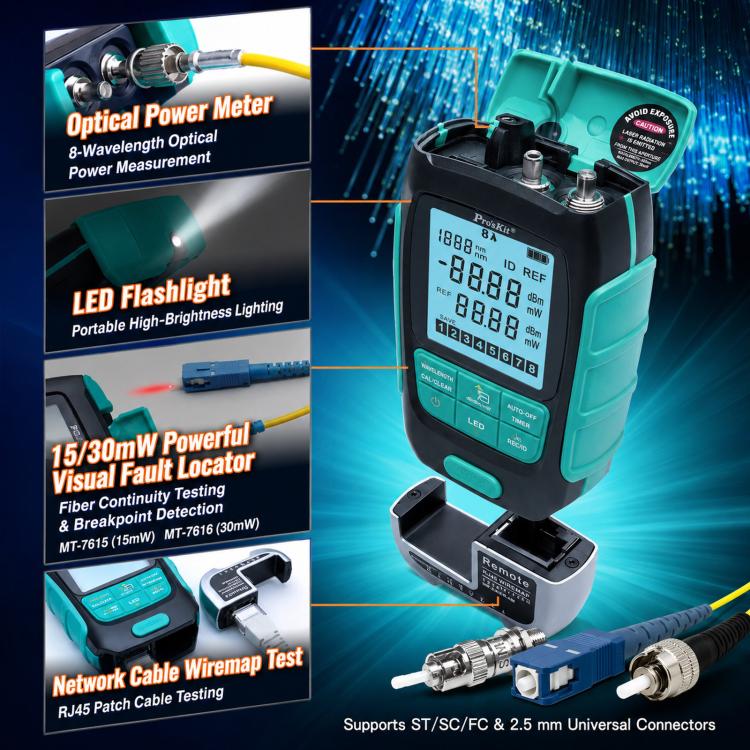

1. OPM high-precision optical power meter, offering 8 wavelengths for testing

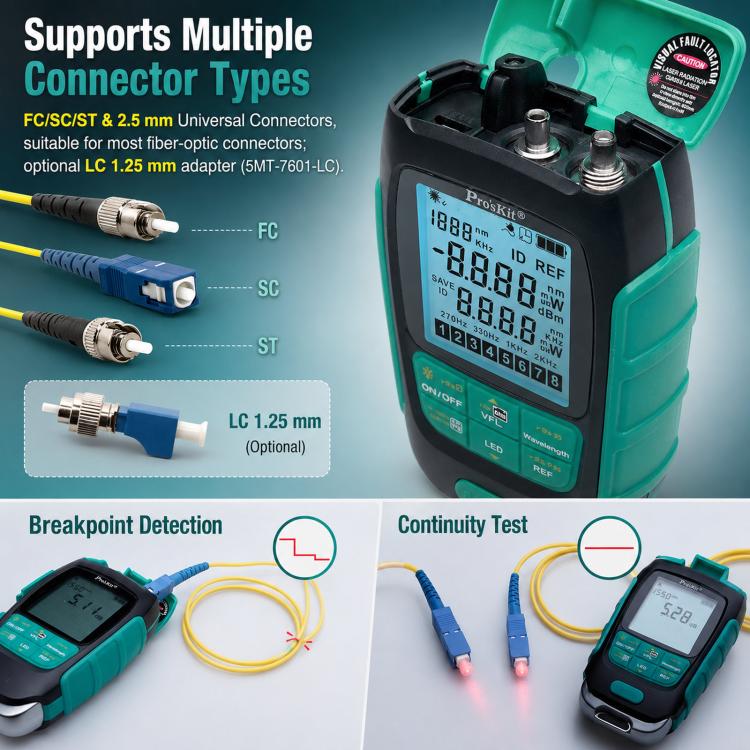

2. Universal FC/SC/ST & 2.5mm connectors, compatible with most fiber optic connectors

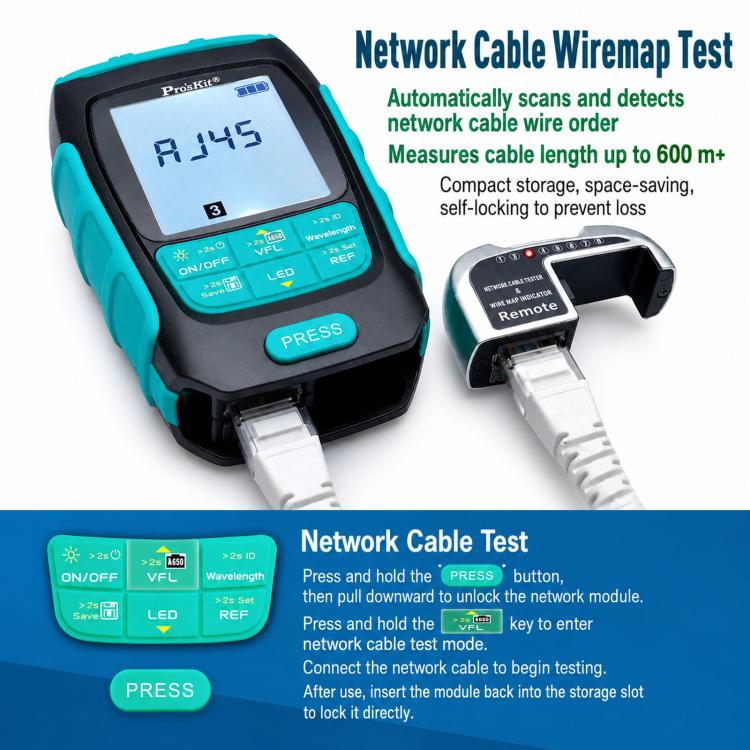

3. Automatically scans and detects network cable sequence; measures cable lengths up to 600 meters or more; portable and space-saving design; self-locking mechanism prevents loss

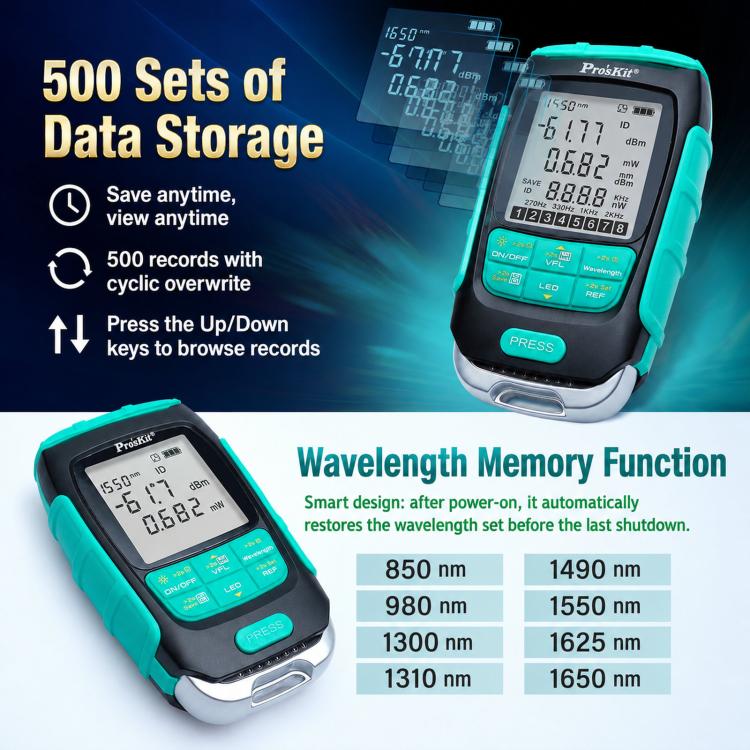

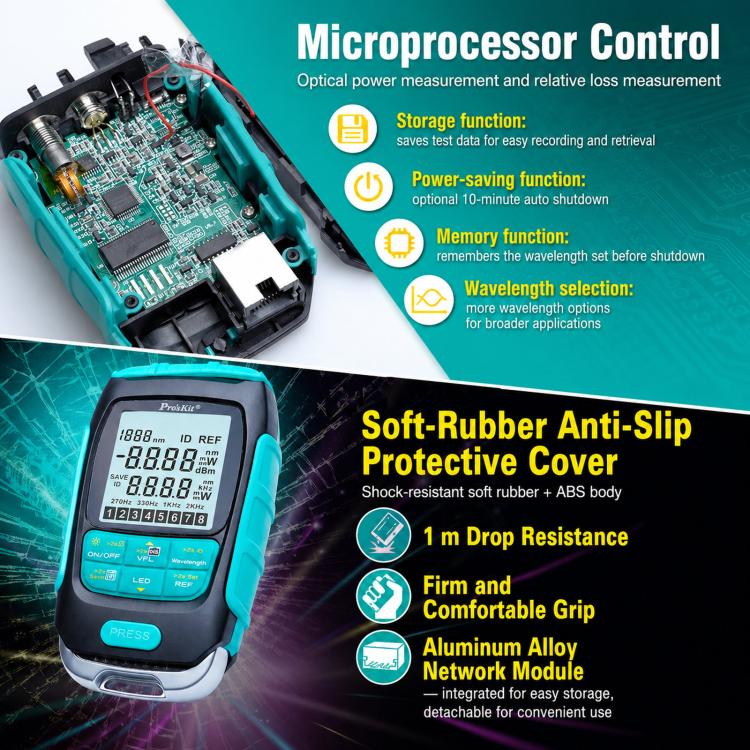

4. Store and view data anytime; 500-entry cyclic storage; scroll through records using the up and down buttons
5. Wavelength memory function; automatically restores the wavelength set before the last shutdown upon power-on

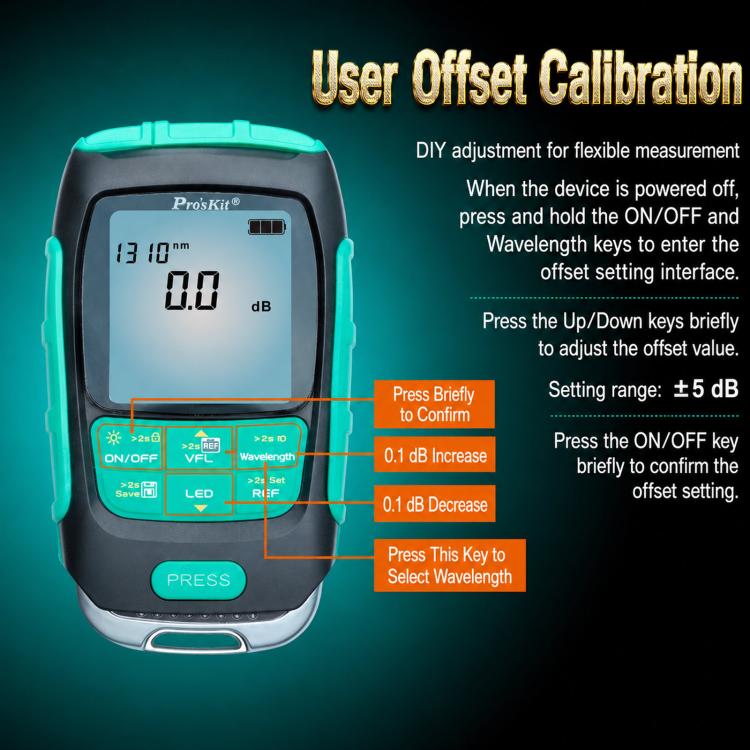

6. Self-calibration of offset; DIY adjustment for flexible measurements

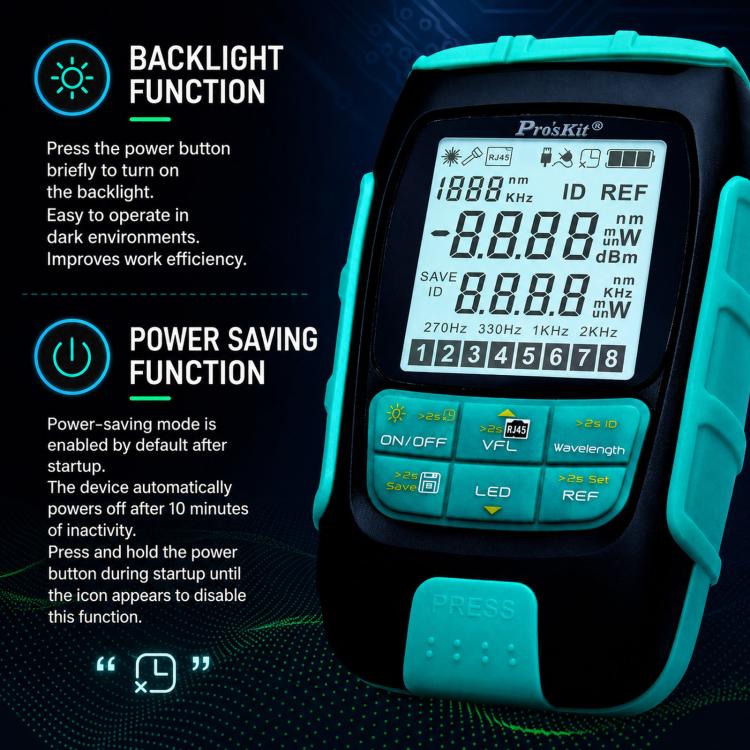

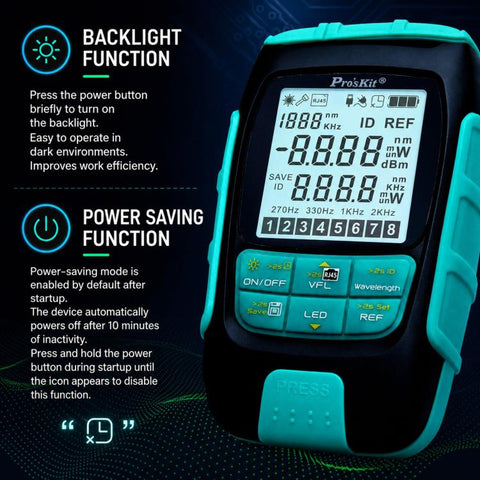

7. Short press the power button to turn on the backlight; works in dim environments to improve work efficiency
8. Short press the power button to enable power-saving mode by default; automatically shuts down after 10 minutes of inactivity
9. Intelligent multi-protection design
10. Soft rubber anti-slip sleeve design, featuring shock-resistant soft rubber and an ABS body
11. Lightweight and compact, convenient to carry and use
